Dry Fire Sprinkler Systems Explained: How They Work

When a fire breaks out, seconds matter, and the sprinkler system overhead may be the difference between a minor scare and a devastating loss. But not all sprinkler systems are built the same. In colder regions like Northeast Ohio, many buildings rely on a specialized setup designed to withstand freezing temperatures without failing. If you have ever wondered how does a dry fire sprinkler system work, you are asking a question that matters for the safety of your home or business. At Pine Ridge Cleaning & Restoration, we see the aftermath of fire and water emergencies every week, and we provide damage restoration services in Cleveland for property owners recovering from both.

Understanding the mechanics behind these systems helps you make smarter decisions about protecting your property. It also explains why a sprinkler activation can lead to water cleanup needs, and why the right response afterward is so important. Let us walk through the details in plain language.

What Makes a Dry Sprinkler System Different

Traditional wet pipe sprinkler systems keep water sitting in the pipes at all times. The moment a sprinkler head reaches a triggering temperature, water flows immediately. That works beautifully in heated spaces, but it becomes a liability in areas exposed to freezing conditions. Water trapped in cold pipes can freeze, expand, and burst the lines, leaving a system that fails when you need it most.

A dry pipe system solves this problem by keeping the pipes filled with pressurized air or nitrogen instead of water. Water is held back at a heated location, ready to surge forward only when a sprinkler head activates. This design makes dry systems the preferred choice for unheated warehouses, parking garages, attics, loading docks, and other spaces where temperatures regularly drop below freezing during Cleveland winters.

How Does a Dry Fire Sprinkler System Work

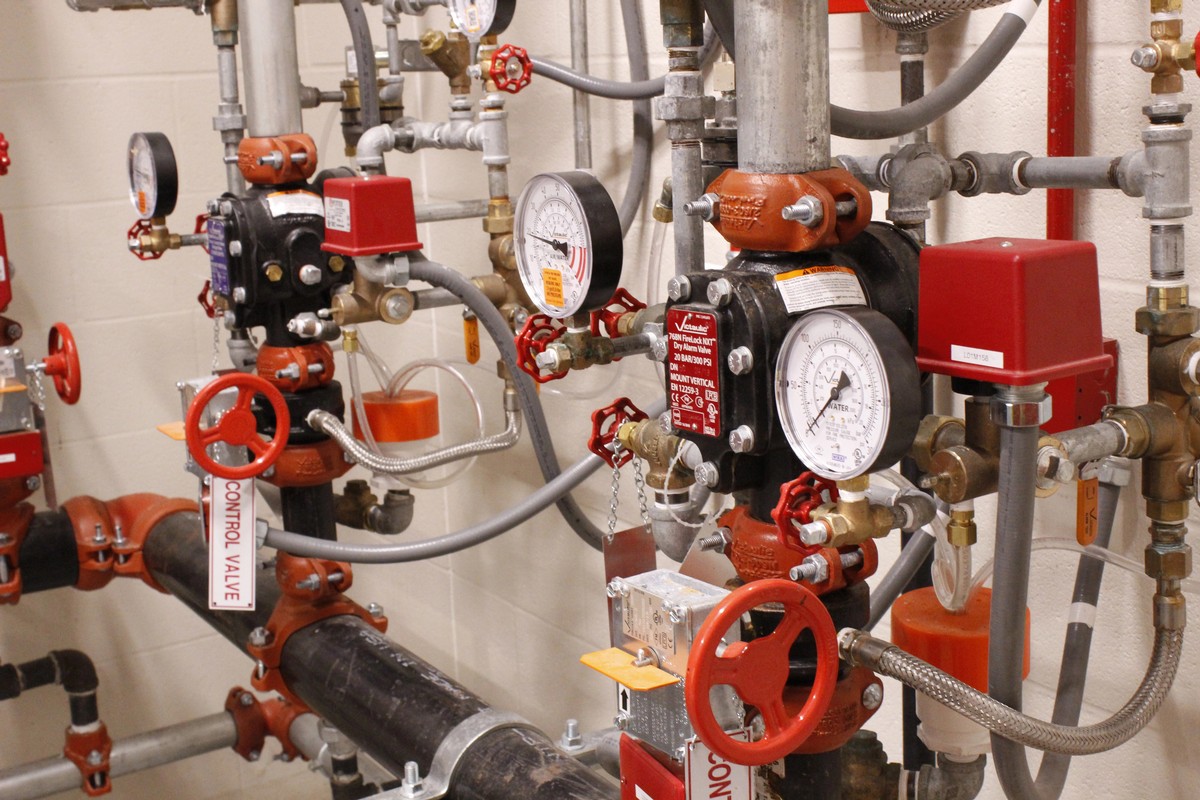

The heart of the answer to how does a dry fire sprinkler system work lies in a component called the dry pipe valve. This valve separates the pressurized air in the sprinkler piping from the pressurized water waiting in the supply line. As long as the air pressure in the pipes stays high enough, it holds the valve closed and keeps the water back.

When a fire generates enough heat, the glass bulb or fusible link inside a sprinkler head breaks open. That opening releases the air pressure in the pipes. Once the pressure drops below a set threshold, the dry pipe valve trips open, and water rushes through the system toward the activated head. Only the sprinklers exposed to the fire discharge water, not every head in the building, which is a common misconception. The result is targeted suppression right where the flames are burning.

Because the pipes start out empty, there is a short delay between activation and water discharge compared to a wet system. Engineers account for this by carefully sizing the system and, in some cases, adding accelerators or exhausters that speed up the release of air. These devices help the water reach the fire faster, keeping the delay to just a few seconds.

Where Dry Systems Are Most Useful

Dry fire sprinkler systems shine in environments that a wet system simply cannot handle safely. Cold storage facilities, unheated commercial buildings, exterior canopies, and industrial sites throughout Cleveland and the surrounding areas often depend on them. Any structure with piping routed through spaces that are not consistently heated is a strong candidate.

These systems require more maintenance and expertise than wet systems, which is a trade-off worth understanding. The air compressors, valves, and low-point drains all need regular inspection to keep everything functioning correctly. When they are properly maintained, dry systems deliver reliable protection in conditions that would cripple a standard setup. That reliability is exactly why so many property managers in the region choose them.

The Water Damage Side of Fire Suppression

Here is something many property owners overlook. Even a small sprinkler activation, or an accidental discharge, can release a significant volume of water into a building. Fire suppression saves lives and structures, but the water that puts out the flames still needs to be cleaned up quickly and thoroughly. Left unaddressed, that moisture soaks into flooring, drywall, insulation, and framing, setting the stage for mold and structural problems.

This is where fire and water recovery overlap. After a fire event, you are frequently dealing with soot, smoke residue, and water saturation all at once. Prompt water damage restoration in Cleveland makes a real difference in how much of your property can be saved. The faster the water is extracted and the structure dried, the lower the chance of secondary damage taking hold.

Our team handles both sides of the equation. We address the burned and smoke-affected materials while also managing the moisture that suppression systems leave behind. If you would like to learn more about our full range of capabilities, our disaster restoration services cover everything from smoke cleanup to structural drying.

Common Questions About Dry Sprinkler Systems

Property owners often raise a few recurring concerns once they understand the basics. The most frequent questions include how these systems handle freezing, how quickly they respond, and what happens after they activate. A few quick answers help clear things up:

• Freezing protection comes from keeping water out of the exposed pipes until the moment it is needed, which prevents burst lines in cold areas.
• Response is slightly slower than a wet system because air must escape first, though accelerators minimize the delay to a few seconds.
• After activation, the system must be professionally reset, drained, and recharged with air before it is ready to protect again.

It is also worth noting that only the sprinkler heads directly exposed to fire heat will open. The idea that one activation soaks an entire building comes from movies, not reality. That targeted response limits water damage while still stopping the fire.

Being Ready Before an Emergency

The best time to think about fire protection and cleanup is before disaster strikes. Knowing how does a dry fire sprinkler system work gives you insight into your building's defenses, but it also highlights why a trusted restoration partner matters. When a fire is extinguished, the recovery process begins immediately, and having a plan keeps stress low and outcomes better. We proudly serve homeowners and businesses across Cleveland and neighboring communities, including fire & smoke damage restoration in Gates Mills.

To recap, dry systems keep pipes filled with pressurized air, use a dry pipe valve to hold water back, and release that water only when a sprinkler head opens in response to heat. They are ideal for freezing environments, they activate only where needed, and they require professional maintenance and resetting. Understanding how does a dry fire sprinkler system work empowers you to protect your property and respond confidently if the system ever activates.

Whether you are dealing with the aftermath of a fire, water from a sprinkler discharge, or both at once, Pine Ridge Cleaning & Restoration is here to help. Reach out to our team for a fast response and a clear plan to restore your property. When you need experienced professionals who understand both fire and water recovery, we are ready to answer the call and get your home or business back to normal.
